Motor Type |
B56.F6U 2.6 Nm - 3000 rpm - 10 poles - 400V |
| Type | Stall torque (Δt=105°C) Mo Nm | Rated speed n rpm | Rated power Pn kW | Rated torque (Δt=105°C) Mn Nm | Peak torque Mpk Nm | Max speed nmax rpm | Moment of inertia J 10⁻⁴ Kgm² | Thermal time constant Tth min | Voltage constant ke Vs | Torque constant kt Nm/A | Resistance phase to phase (20°C) Rw Ω | Inductance phase to phase Lw mH | B.E.M.F. @ rated speed En Vrms | Stall current Io Arms | Rated current In Arms | Peak current Ipk Arms | Connection type/size | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B56.F6U | 2.6 | 3000 | 0.8 | 2.5 | 7.5 | 6600 | 0.8 | 18 | 0.84 | 1.45 | 13.52 | 66.6 | 264 | 1.8 | 1.7 | 7.6 | 7/1 | 3.2 |
| Design | Aluminium |
| Degree of protection | IP 65 |
| Bearings DE | 6003 |
| Bearings NDE | 6003 |
| Lubrication grease | low & high temperature grease |
| Regreasing device | permanent lubrication |
| Cooling | radiation and natural convection |
| Vibration Level | A (normal) |
| Voltage | 400V |
| Poles | 10 |
| Thermal protection threshold Θmax °C | 140 |

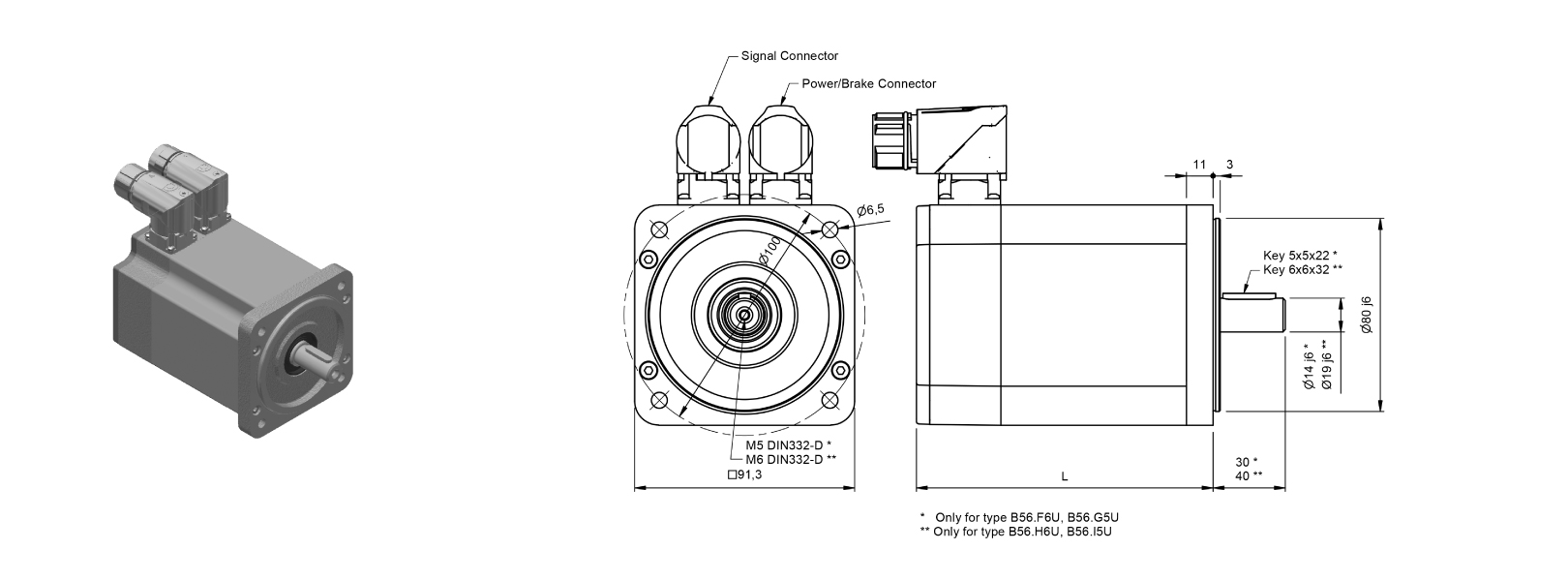

| DIMENSIONS | Square flange mm | Max length with resolver mm | Max length with encoder mm | Centering diameter ∅ CD mm | Bolt circle diameter ∅ BC mm | Shaft diameter ∅ SD mm | Shaft length SL mm | Fan Kit square mm |
|---|---|---|---|---|---|---|---|---|
