Motor Type |
B64.11U 11.5 Nm - 3000 rpm - 10 poles - 400V |
| Type | Stall torque (Δt=105°C) Mo Nm | Rated speed n rpm | Rated power Pn kW | Rated torque (Δt=105°C) Mn Nm | Peak torque Mpk Nm | Max speed nmax rpm | Moment of inertia J 10⁻⁴ Kgm² | Thermal time constant Tth min | Voltage constant ke Vs | Torque constant kt Nm/A | Resistance phase to phase (20°C) Rw Ω | Inductance phase to phase Lw mH | B.E.M.F. @ rated speed En Vrms | Stall current Io Arms | Rated current In Arms | Peak current Ipk Arms | Connection type/size | Weight kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B64.11U | 11.5 | 3000 | 2.8 | 9.0 | 34 | 6000 | 5.1 | 30 | 0.94 | 1.63 | 1.55 | 15.1 | 296 | 7.1 | 5.5 | 31.3 | 7/1 | 7.2 |
| Design | Aluminium |
| Degree of protection | IP 65 |
| Bearings DE | 6205 |
| Bearings NDE | 6303 |
| Lubrication grease | low & high temperature grease |
| Regreasing device | permanent lubrication |
| Cooling | radiation and natural convection |
| Vibration Level | A (normal) |
| Voltage | 400V |
| Poles | 10 |
| Thermal protection threshold Θmax °C | 140 |

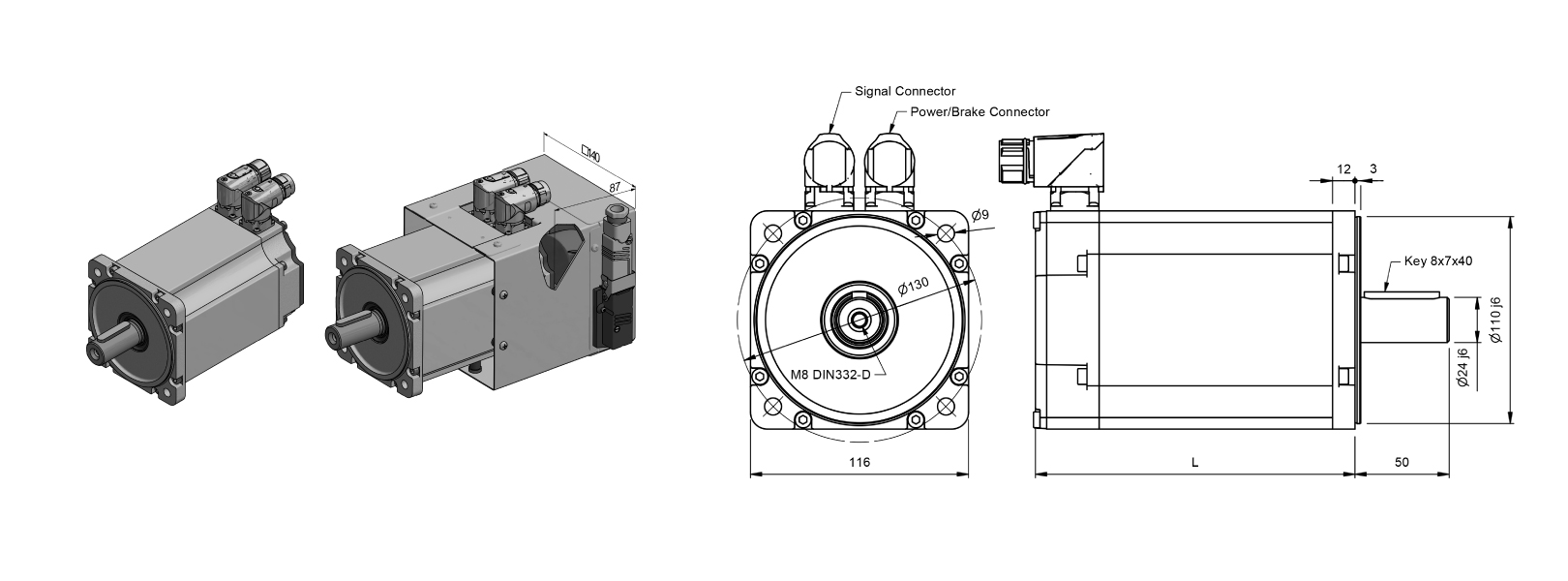

| DIMENSIONS | Square flange mm | Max length with resolver mm | Max length with encoder mm | Centering diameter ∅ CD mm | Bolt circle diameter ∅ BC mm | Shaft diameter ∅ SD mm | Shaft length SL mm | Fan Kit square mm |
|---|---|---|---|---|---|---|---|---|
| B64U | 116 | 140 | 148 | 110j6 | 130 | 24j6 | 50 | na |
