Integrated architecture for battery-powered mobility

Battery-Powered Solutions are engineered for industrial equipment powered by onboard batteries, where energy efficiency, compact integration and controlled motion are essential.

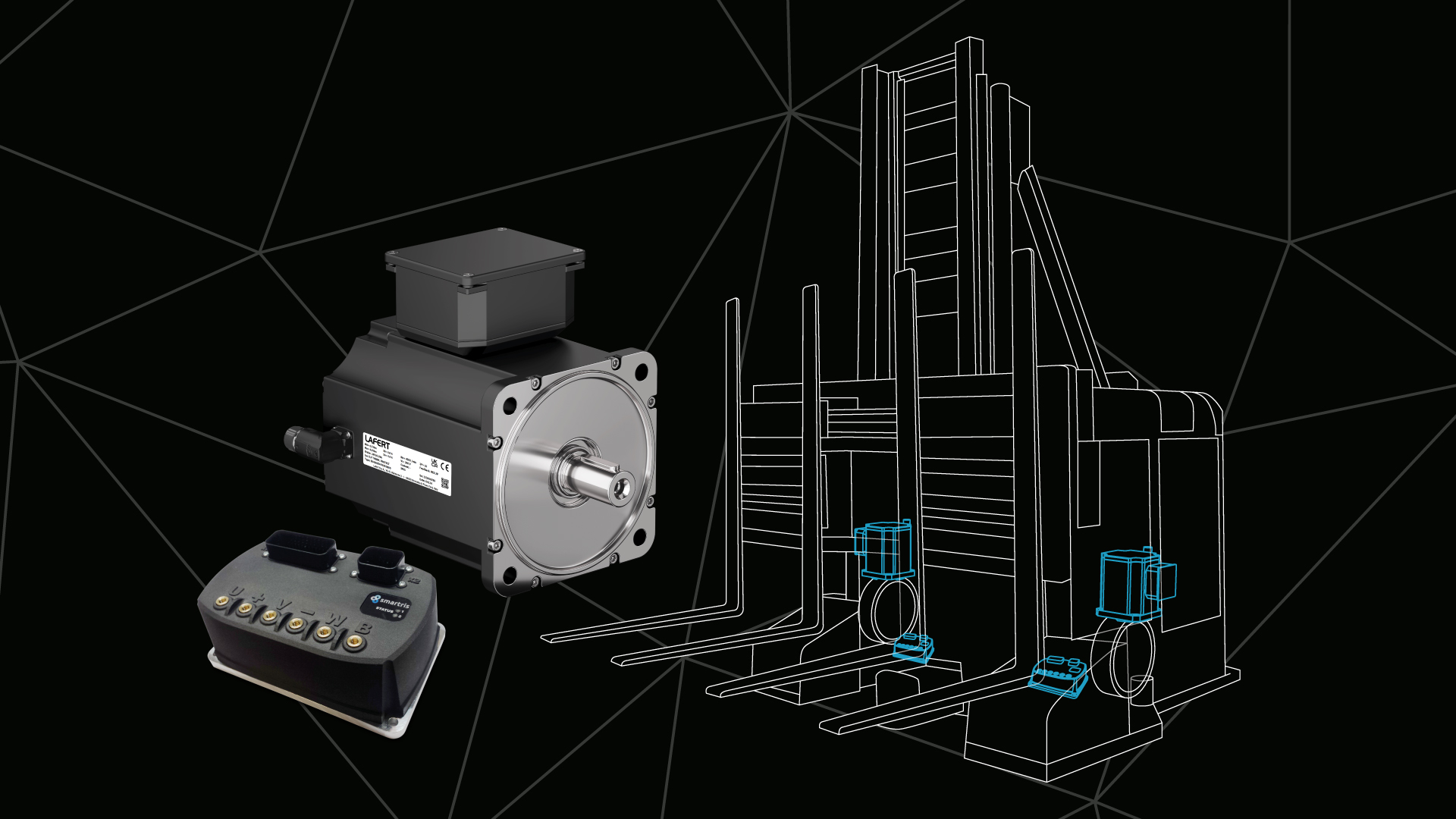

The system integrates three core elements into a coordinated architecture:

• Low-voltage Permanent Magnet AC Brushless Servo Motor (48–96 Volt, high current)
• Dedicated battery-powered Servo Drive – Smartris
• Optimized connection and cabling configuration

This integrated design ensures compatibility between motor and drive, simplifying selection and commissioning while delivering optimized motion performance.

The low-voltage servomotor platform is available in 5 motor sizes (B30J, B40J, B63K, B71Q, B100J), designed to cover a wide torque range. Alongside it, the Smartris Drive (available in 4 sizes depending on motor torque) precisely manages motion.

The Permanent Magnet technology ensures high efficiency and stable torque delivery, supporting longer battery life and improved system performance.

Main advantages of Battery-Powered Solutions

• Integrated motor + drive + cabling package
• 48–96 Vdc battery-powered architecture
• Carefully controllable start and stop ramps (s-curve)
• Reduced energy consumption thanks to Permanent Magnet efficiency
• Compact design for space-constrained mobile platform
• Safety features:
  Safe Torque Off (STO) - SIL3-Ple, Safe Brake Control (SBC) - SIL3-PLe

Easiness of use tool for commissioning

SmartrisApp is an important user application for commissioning and debugging. The application can be installed on Windows PC and connected to the Smartris drive via various interfaces (RS232 serial, MODBUS, CAN). SmartrisApp permits to:

• set parameters user friendly
• generate CANOpen and/or MODBUS commands to be implemented in master
• measure real time values
• read diagnostic errors
• move the motor with bench test
• upload/download file parameters and firmware
